300B Solder Separation Machine
- Automatic solder separation and winding
- Solder separation parameter storage function
- Automatic punching for solder separation to prevent solder splashing
- Adjustable solder feed speed
Liên hệ nhận báo giá
Features
- Automatically pierces holes or opens grooves to separate solder, reducing solder splashing during the soldering process.
- Automatic solder separation and winding with adjustable speed.
- Separation parameters can be stored, allowing quick configuration when needed.
- Solder feed speed is adjustable; the separation unit can be adapted to different solder diameters.
- Equipped with a proximity switch to prevent solder from exceeding its boundary.

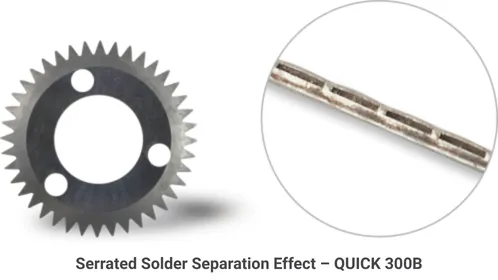

Serrated Solder Separation Effect
Specifications
| Item | Specification |
|---|---|
| Model | QUICK 300B |
| Power | 27W |
| Motor | Stepper motor |
| Solder Feed Speed | 1 mm/s ～ 50 mm/s |
| Solder Diameter | 0.6, 0.8, 1.0, 1.2 mm |
| Dimensions | 500 × 300 × 340 mm |
| Weight | Approx. 13 kg |
Note: When ordering, please specify the solder diameter to select the proper blade and associated components.
