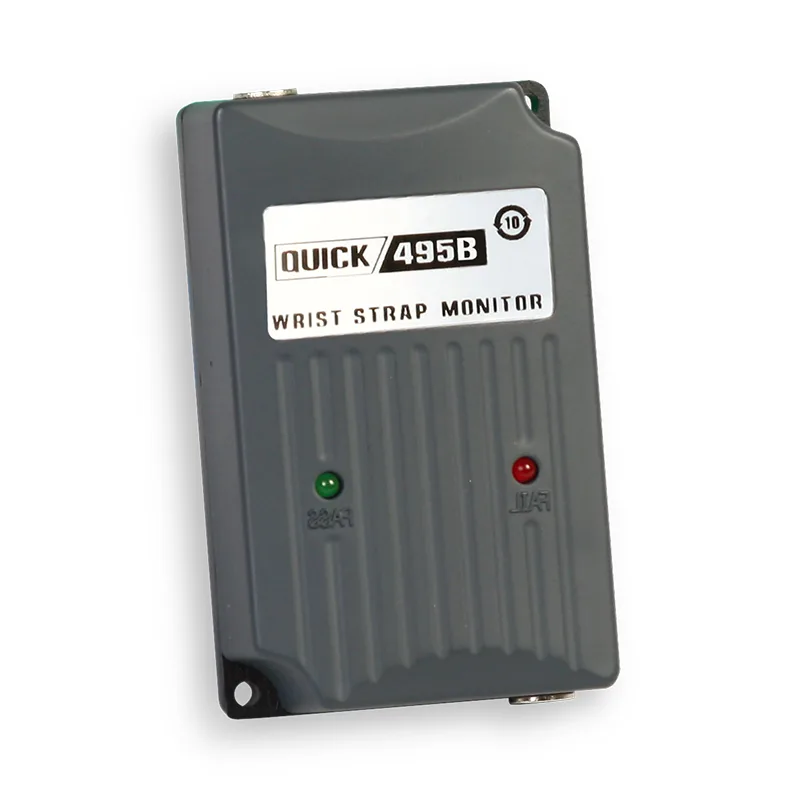

495B Static Tester
- Real-time monitoring of dual-wire wrist straps and grounding status
- Indicator lights with audible and visual alarms
- Simple and practical, compact and convenient
Liên hệ nhận báo giá
Features
- Continuous real-time monitoring to ensure wrist straps and grounding are in proper condition, suitable for areas with high ESD protection requirements.
- Ensures human body static is discharged through real-time monitoring, effectively reducing potential damage caused by electrostatic hazards.
- Compact design, easy to operate.

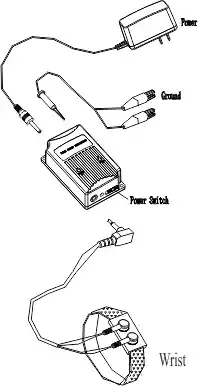

Operation Diagram
Specifications
| Specification | Value |
|---|---|
| Model | QUICK 495B |
| Input voltage | DC 6–12V |
| Operating current | <50 mA (DC 12V) |
| Dimensions | 75 × 46 × 27 mm |
| Weight | Approx. 0.3 kg (excluding accessories) |
| Power supply | DC 6–12V (inductive transformer) |
Test Parameters (For QUICK 495B only)
| Standard Resistance Value | Indicator Light Status |
|---|---|
| 675 kΩ | Red |
| 825 kΩ | Green |
| 9 MΩ | Green |
| 11 MΩ | Red |
