TS8+ Intelligent Precision Soldering Station
- 2-Second Rapid Heating
- Three-Channel Process Parameter Presets
- Password Lock to Protect Process Parameters
- Integrated Plug-and-Play Resistive Heating Core
- Automatic Sleep and Shutdown
Liên hệ nhận báo giá

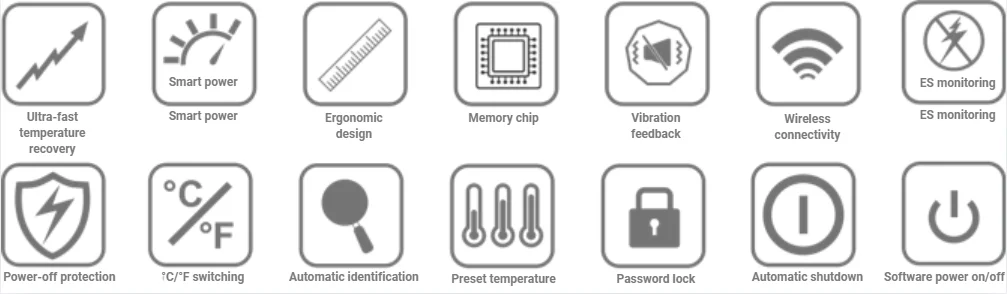

Features
- Wired and Wireless Industrial Connectivity
- Integrated Intelligent Soldering Tip
- Smart Standby Detection Sensor
- Next-generation Holder with Anti-Shock and Solder-Splash Protection

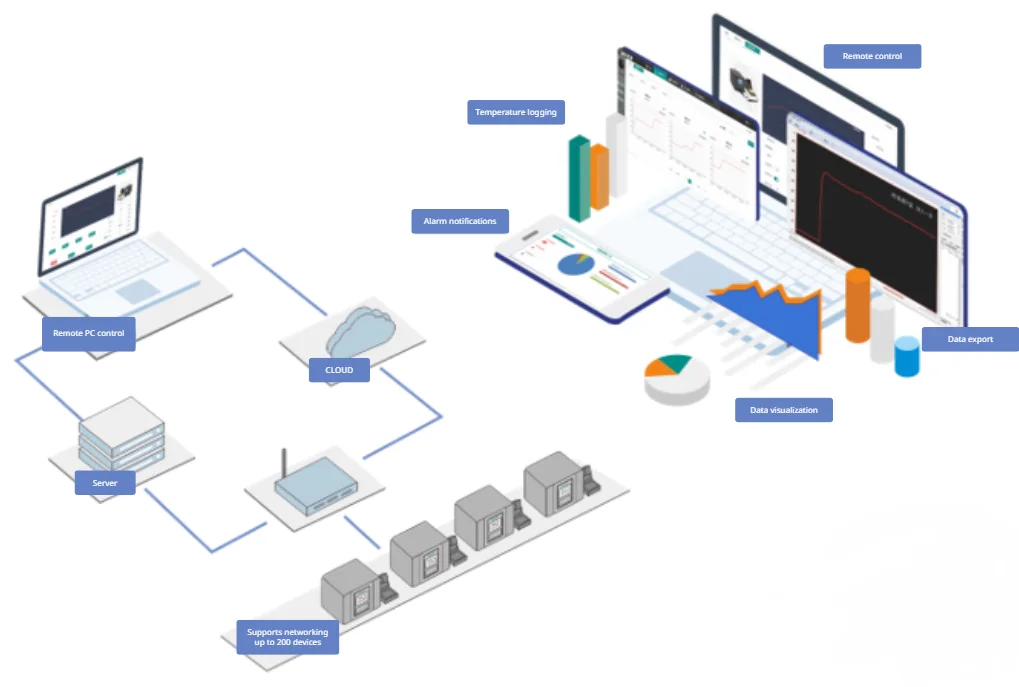

Intelligent Management Platform
The soldering station integrates a wireless communication module and can connect to the IIoT intelligent management platform software, enabling:
- Online Monitoring
- Data Traceability
- Alarm and Event Linkage
- Soldering Process Replication
- Statistical Reporting and Analysis
- Remote Service and Maintenance Management

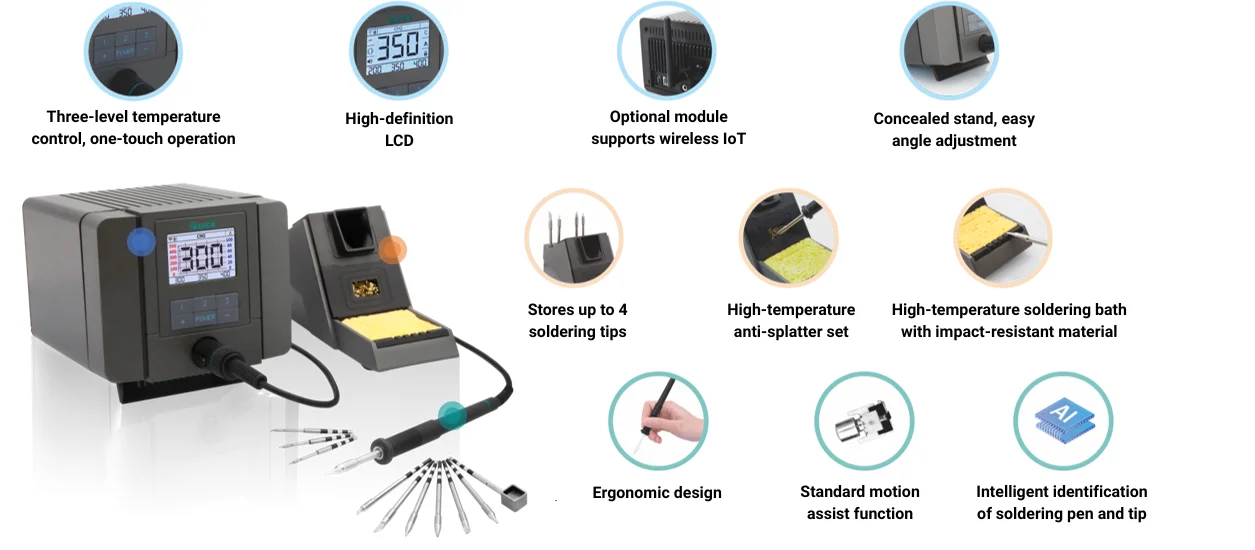

Product Details
Technical Specifications
| Product Specifications | ||
|---|---|---|
| Model | QUICK TS8+ | QUICK TS8 |
| Power Output | 150W | |
| Operating Voltage | 220V AC | |
| Temperature Range | 100 – 450℃ | |
| Ground Resistance | <2Ω | |
| Voltage to Ground | <2mV | |
| Handle Model | TSS80A | |
| Soldering Tip Model | TSS08 Series | |
| Tip / Heating Element | Integrated Assembly | |
| Industrial Connectivity (IIoT) | Yes | No |
| Dimensions (L × W × H) | 137 × 168 × 114 mm | |
| Weight | Approx. 2.9 kg | |
Replaceable Soldering Tips
Precision Soldering Tips
