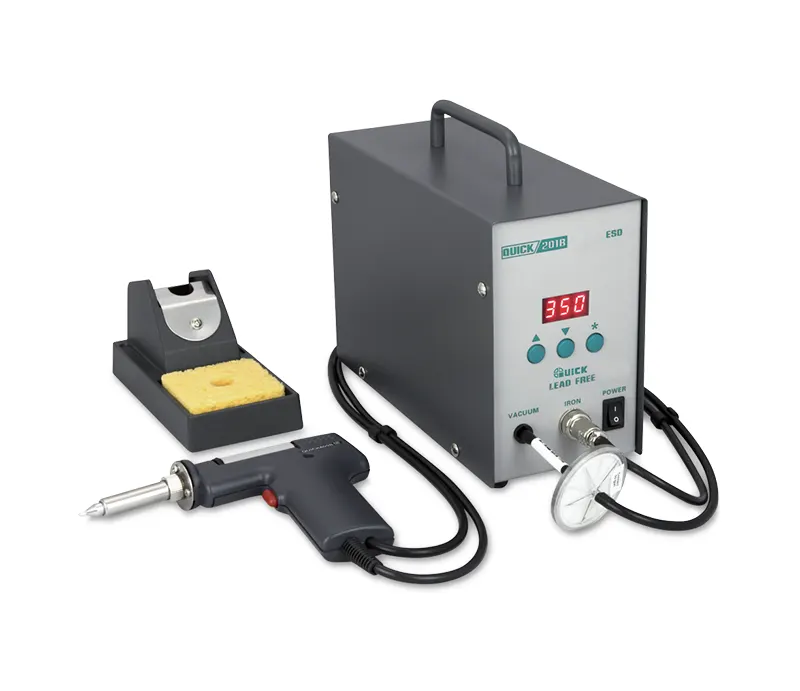

201B Desoldering Gun
- Built-in vacuum pump with strong suction.
- Closed-loop sensor temperature control, precise temperature.
- Anti-scald vacuum hose.
Liên hệ nhận báo giá
Features
- Anti-static design prevents PCB damage from static electricity or leakage.
- Integrated unique vacuum pump, stronger suction.
- Closed-loop sensor-controlled heating system, precise temperature.
- Heating element uses low-voltage power, fully isolated from mains.
- Digital LED display, button-controlled temperature, selectable automatic sleep mode.
- Digital temperature calibration for increased reliability.
- Solder tip and heating tube specially designed so that molten solder is sucked into the filter, reducing maintenance and improving efficiency.
- Burn-proof vacuum nozzle prevents contact with the heating element and damage.
- Main unit designed for lead-free soldering; lead-free desoldering can be performed at low temperature using the appropriate tip.
Replaceable Soldering Tips
| P/N | Diameter øA (mm) | Diameter øB (mm) |
|---|---|---|
| A1001 | 0.3 | 0.7 |
| A1002 | 1.2 | 1.8 |
| A1003 | 1.0 | 2.0 |
| A1004 | 0.8 | 2.3 |
| A1005 | 1.0 | 2.5 |
| A1006 | 1.3 | 3.0 |
| A1007 | 2.0 | 3.0 |
Specifications
| Item | Value |
|---|---|
| Model | QUICK 201B |
| Solder Pump Power | 12V / 2A |
| Heating Power | 120W |
| Soldering Temperature Range | 200℃ – 450℃ |
| Type of Solder Pump | Diaphragm type |
| Vacuum Level | 600 mmHg |
| Solder Tip Resistance to Ground | <2Ω |
| Solder Tip Voltage to Ground | <2 mV |
| Overall Dimensions | 105 × 250 × 165 mm |
| Weight | Approx. 4.8 kg |
