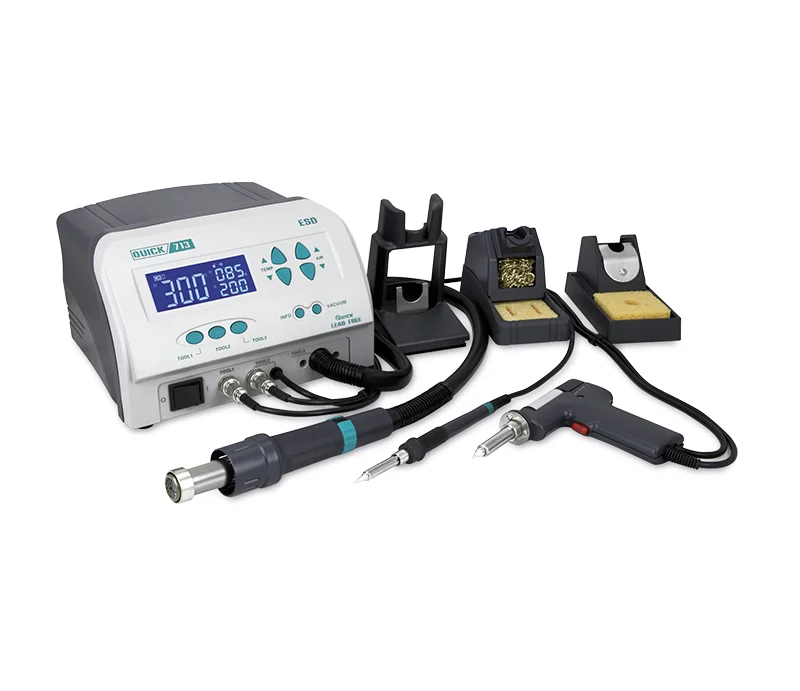

713 Rework System
- Built-in vacuum pump
- Password lock function
- Each function of the unit can operate independently
- Automatic high-airflow cooling system
Liên hệ nhận báo giá
Features
- Key lock protects settings, convenient for controlling temperature parameters.
- Temperature adjustment via buttons; supports automatic sleep/shutdown modes.
- Digital temperature calibration for simple operation.
- Hot air handle with integrated suction pen for easy operation.
- Brushless vortex fan, stepless airflow adjustment, wide range suitable for various applications.
- Automatic cooling system extends heating element lifespan and protects the hot air handle.
- Integrated vacuum pump, strong suction, no external system required.
- Precise temperature control with closed-loop sensor.
- Lightweight soldering handle for easy operation.
Specifications
Soldering Section
| Item | Value |
|---|---|
| Power | 90W |
| Temperature Range | 200℃ – 480℃ |
| Sleep Temperature | 200℃ |
| Sleep Mode Time | 0 – 99 minutes |
| Temperature Stability | ±2℃ (still air, no load) |
| Maximum Ambient Temperature | 40℃ |
| Tip-to-Ground Resistance | ＜2Ω |
| Weight | Approx. 7.9 kg |
Rework Section
| Item | Value |
|---|---|
| Power | 1000W |
| Temperature Range | 100℃ – 500℃ |
| Airflow | 1 – 120 levels (120 L/min) |
| Maximum Ambient Temperature | 40℃ |
| Temperature Stability | ±2℃ (still air, no load) |
Desoldering Section
| Item | Value |
|---|---|
| Heating Power | 90W |
| Temperature Range | 200℃ – 480℃ |
| Pump Type | Diaphragm type |
| Suction Pressure | 600 mmHg |
| Sleep Mode Time | 1 – 100 minutes |
Replaceable Soldering Tips
Nozzles
